The XBLW NE5532 is a high-performance low noise dual operational amplifier (dual op-amp) integrated circuit. It is similar to many standard operational amplifiers, but it has better noise performance, excellent output driving capability, and quite high small signal bandwidth, and large voltage range of the power supply. Therefore, it is suitable for high quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers. When used as audio amplification, the sound color is warm and the fidelity is high. In the audio industry in the early 1990s, it was hailed as the "emperor of op amp" by enthusiasts, and it is still one of the necessary op amp in the hands of many audiophones. It has an enduring reputation, what kind of charm it has, today for you to uncover its mystery!

specificity

Small signal bandwidth: 10MHZ

Output drive capacity: 600Ω, 10V RMS value

Input noise voltage: 5nV/✓HZ(typical value)

Dc voltage gain: 50000

Ac voltage gain: 2200HZ~10KHZ

Power bandwidth: 140KHZ

Conversion rate: 7V/uS

Supply voltage range: ±3~±20V

Unit gain compensation

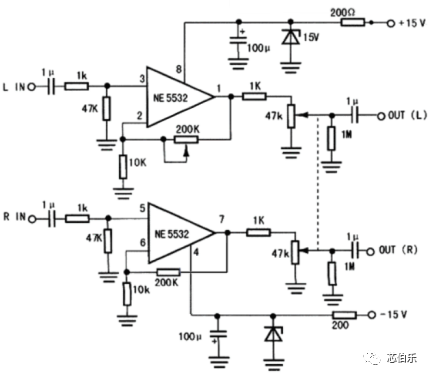

Application circuit

Application product example

    karaoke

Kgobo for XBLW NE5532 application products

    2、Digital Bluetooth power amplifier

 NE5532 simulation power amplifier circuit

Digital Bluetooth amplifier for XBLW NE5532 applications

Due to the excellent performance and stability of XBLW NE5532, it has a wide range of applications in the audio field, in addition to the above products, the following are common applications of XBLW NE5532:

1. Audio amplifier: XBLW NE5532 can be used in home audio, power amplifier and other audio amplifiers to provide high-quality audio amplification effect.

2. Audio effects: XBLW NE5532 can be used in various audio effects, such as equalizer, reverberator, compressor, etc. It can keep the signal pure and the sound quality high fidelity.

3. Electronic instruments: XBLW NE5532 can be used in various electronic instruments, such as synthesizers, electric guitar effects, etc. It can enhance the timbre and quality of the instrument.

4. Voice amplification equipment: XBLW NE5532 can be used in voice amplification equipment such as walkie-talkies and voice amplifiers to provide clear and stable voice amplification effect.

5. Wireless audio transmission: XBLW NE5532 can be used in wireless audio transmission systems, such as wireless microphones, wireless headphones, etc. It can provide a clear and noiseless audio signal.

All in all, the XBLW NE5532 is one of the most popular operational amplifiers in the audio field for its excellent performance and stability. Whether in hi-fi or small audio equipment, the NE5532 can perform excellent audio amplification.
